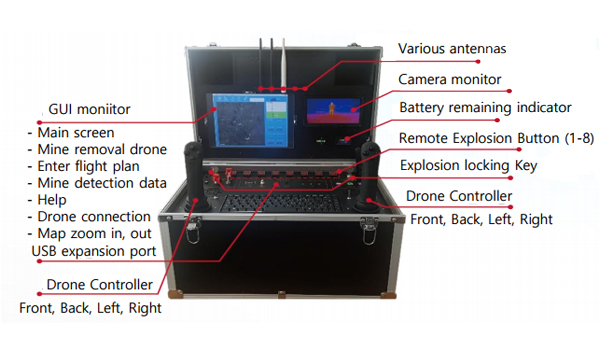

Ground Control Device(GCS)
Domestic and international patent applications
Specifications
- Registered patents for detection and removal of mines using drone(18.02.01)
- Applied patents for mine detection and removal drone(17.09.09)
- Applied patents for Control Method of mine detection drone using Ground Control System(18.04.05)
- Applied patents for Ground Control Device for control of mine detection and removal drone(18.04.05)
- Applied PCT patent for mine detection and removal method using drone(18.04.13)
| Product name | Ground Control Device |
|---|---|
| Size | 600x500x500mm |

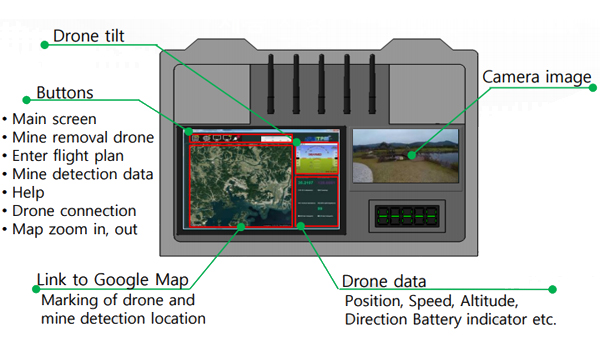

| GUI monitor | Touch screen 11.6” |
| Video monitor | FPV monitor 7” |
| Control method | Joystick |
| Battery capacity | 20,000mAh |
| Charging method | External connection |
| Map output | Link to Google Map |
| Communication antenna | 5EA |
| Expansion port | USB2.0 (4EA) |
